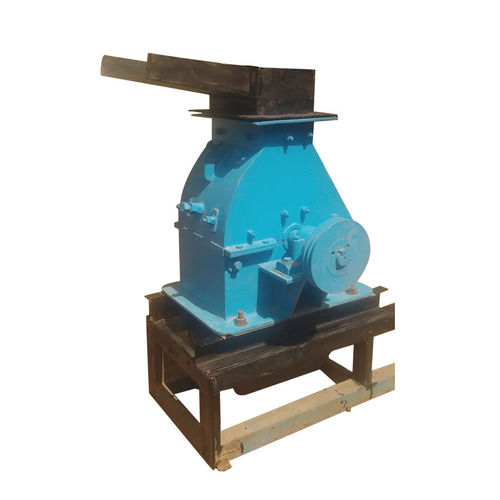

Plastic Bottle Shredder Machine

Plastic Bottle Shredder Machine

Product Details:

  • Type Plastic Bottle Shredder Machine
  • Use Industrial
  • Dimension(L*W*H) 800 x665x650 Millimeter (mm)
  • Voltage 440 Volt (v)
240000 INR/Unit
X

Price And Quantity

  • 240000 INR/Unit
  • 1 Unit

Product Specifications

  • Industrial
  • 800 x665x650 Millimeter (mm)
  • 440 Volt (v)
  • Plastic Bottle Shredder Machine

Trade Information

  • Cash Advance (CA)
  • 7 Days
  • All India

Product Description

Plastic Bottle Shredder Machine our renowned company offers is well designed for shredding a good quantity of plastic bottles in a short span of time. This type shredder is manufactured top-grade metal body, hi-tech induction motor, big mouth hopper, sharp edges blades, and other components & parts with advanced technology. Over and above, Plastic Bottle Shredder Machine can be operated easily owing to its simple operation, and is energy saving, outstanding performance, and available with us in different models and specifications at cost-effective prices.

Technical Specification:

Model GC800C
Output Capacity 2TPH
Material Glass Bottle
Feed Size 1litre Bottle
Product Size 5mm
Rotor Length 805mm
Rotor Speed 1200 RPM.
Feed Opening 200mm x290mm
Hammer Circle Die 405mm
Effective Crushing Width 290mm
Overall Dimensions 800 x665x650 mm
Motor 10HP/1440RPM (Optional)
Drive Thru "V" Belt & "Pulley"
Body M.S. Fabricated to IS:2062
Breaker Block Mn Steel Gr III (12 to 14%  Mn)
Hammers 3 Nos T-Type Mn Steel Gr III (11Kgs.)
Shaft Steel EN-8
Crushing Chamber Sail Hard Plates
Plummer Block Cast Iron (Dust Proof)
Roller Bearing 22214 K
Pulley Cast Iron
Lubrication Grease
Painting 1 coat of Red Oxide followed by



2 coats Enamel Paint

Hopper Feature Yes
